Access control readers that keep your building protected

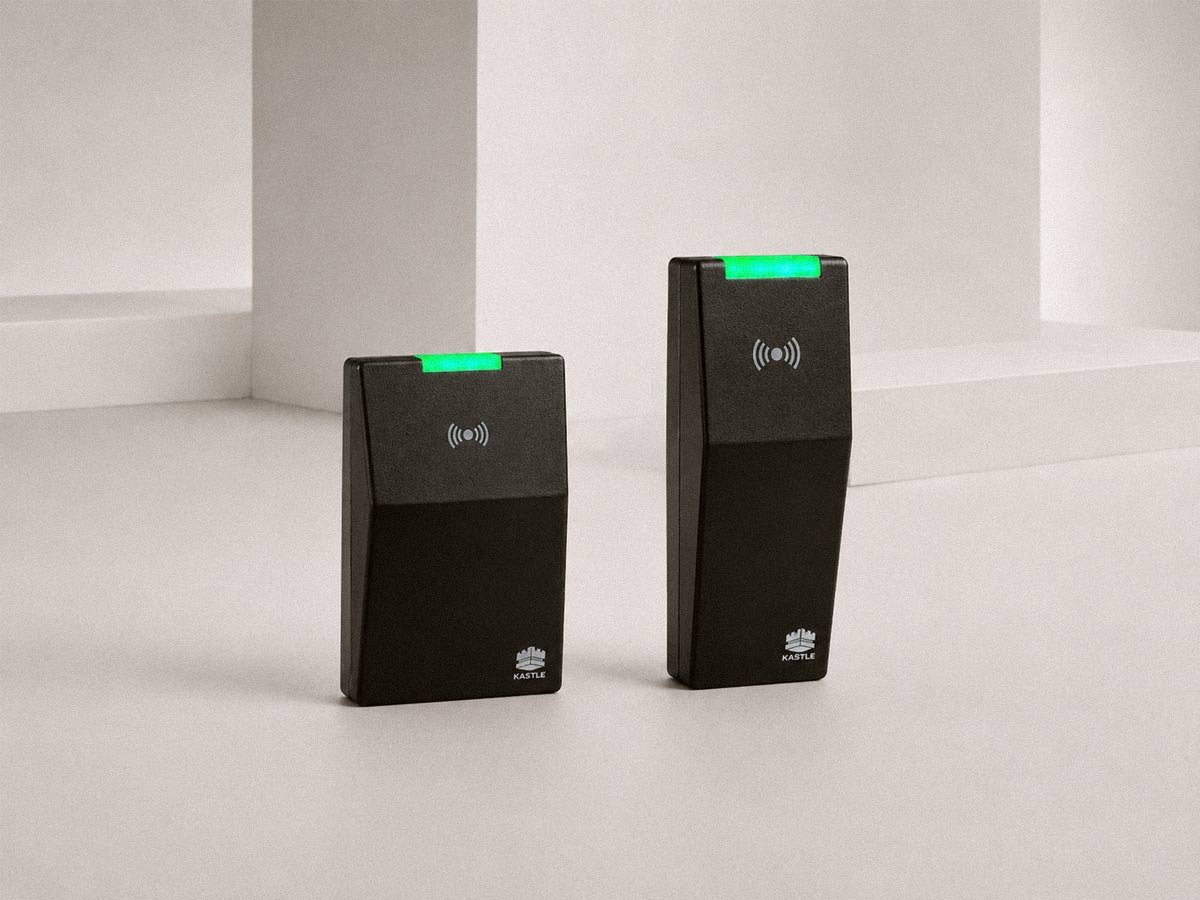

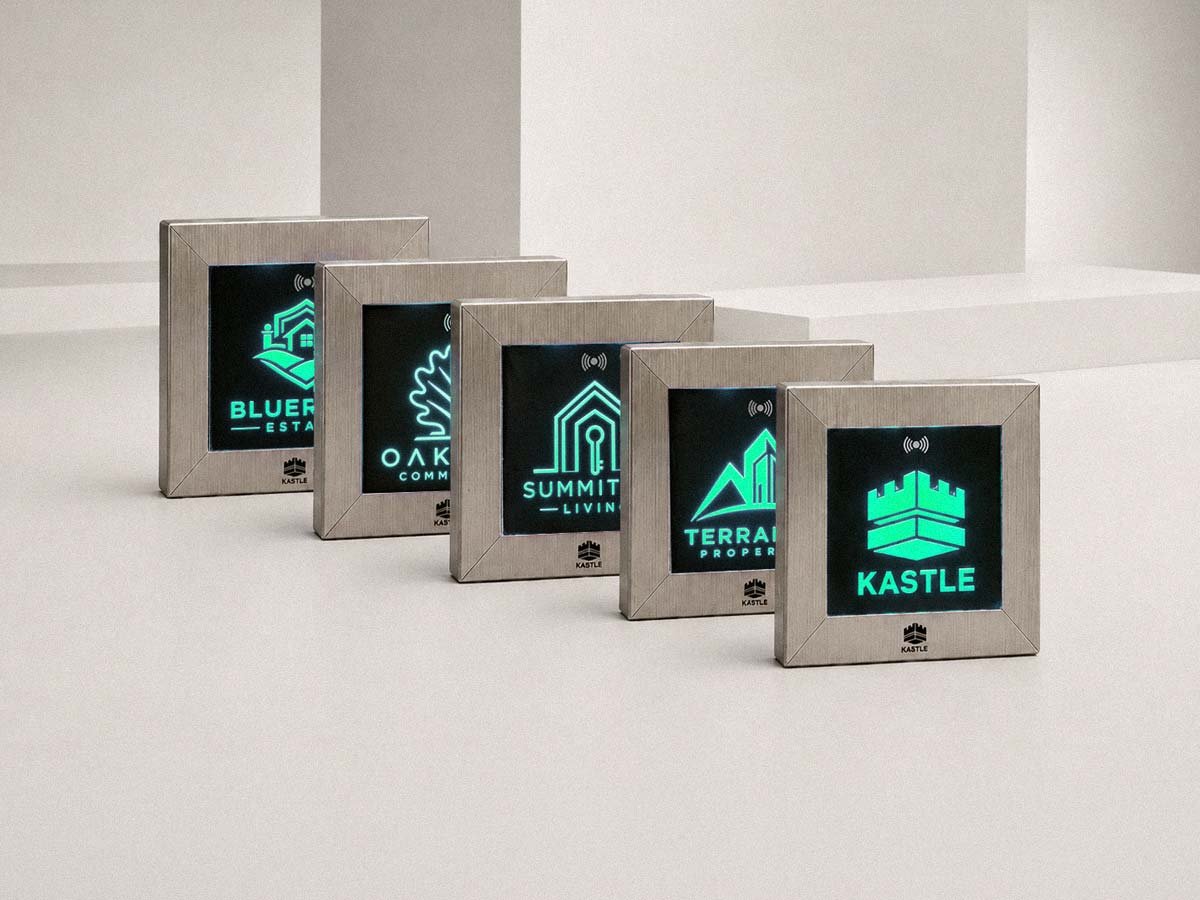

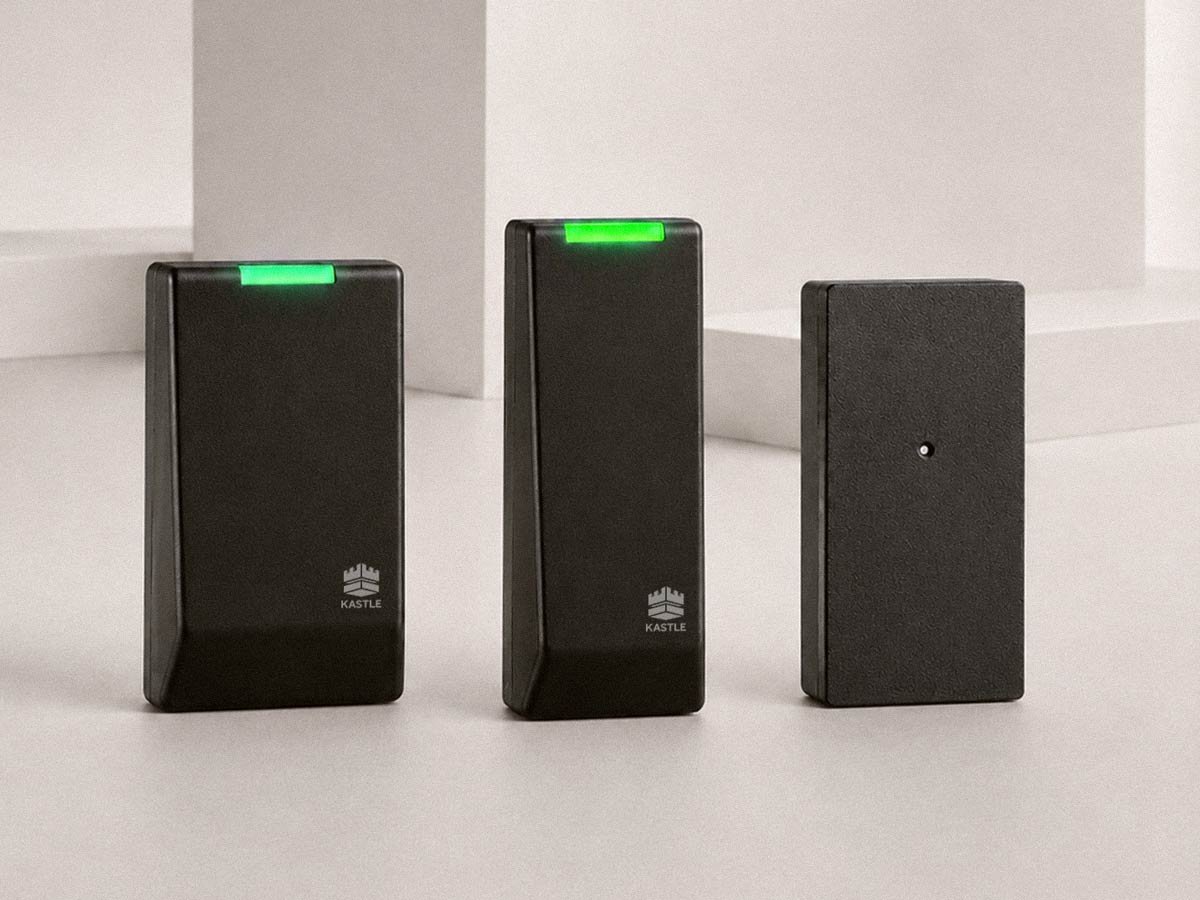

Access control reader types typically include wall-mount, mullion-mount, architectural, embedded, and kiosk readers, each suited to a different entry point. Kastle’s lineup covers all of these, from standard wall and mullion-mount readers for most doors to architectural readers with etched, backlit logos for high-end lobbies to embedded door readers small enough to fit inside elevators, turnstiles, and kiosks. The right choice depends on the entry point, matched door by door rather than a single one-size-fits-all device.

Yes. A modern access control card reader supports multiple credential technologies in a single device, rather than requiring separate hardware for each. Kastle’s card reader door lock systems support proximity cards, smart cards, HID credentials, mobile credential door reader technology via Apple and Android NFC, and Bluetooth, all in one RFID door reader, so buildings can run older badges, HID credentials, and newer mobile credentials side by side during a migration.

Many buildings already run on HID credentials, and a better managed security solution keeps them working instead of replacing them. Kastle’s readers support HID iClass, Seos, and other HID proximity-based credentials, so existing badges keep working on day one. It’s the same interoperability story as Aliro: you get choice and security together, building on what you already have instead of starting over.

Generally, mobile credentials offer stronger security than a standard proximity card reader or fob, since they rely on encrypted communication and can require additional authentication on the device itself. Kastle’s smart card reader access control supports high-security standards alongside mobile credentials and can use modern OSDP card reader communication for encrypted data transfer, as well as legacy Wiegand, so buildings get the security benefits of mobile credentials while keeping support for existing proximity and smart cards. Mobile credentials are also less likely to be shared, since no one hands over their phone to a friend the way they might a keycard or fob. Finally, the credential itself sits in the phone's secure area. If a user loses their phone, they are more likely to remotely disable it, for example with Find My, which also disables the credential and keeps a stolen phone from granting a bad actor access.

A weatherproof access control reader needs to be rated for exposure to moisture, dust, and temperature extremes. Kastle’s door readers are IP67 rated and tested to perform in temperatures ranging from -35℃ to 70℃, so they hold up in exposed entries, parking structures, and other outdoor installations without a separate model.

Aliro is an open credential standard from an alliance of security manufacturers, designed so access control readers and credentials from different brands can work together instead of locking a building into one vendor. As part of that alliance, our Aliro-compatible access control card readers support certified credentials across manufacturers, including mobile wallet credentials through Apple, Google, and Samsung, giving buildings the freedom to choose one without sacrificing security or flexibility.

An access control reader is the device at a door, gate, or turnstile that reads a credential, a card, fob, or mobile credential, and sends it to the access control system to grant or deny entry. Kastle’s lineup includes Aliro, Multitech, architectural, and embedded models, each built for a different entry point.

A door card reader captures credential data from a card, fob, or mobile wallet and sends it to the access control panel for verification. The panel checks stored permissions and unlocks the door if access is granted. Kastle’s readers work with both new and existing panels, so buildings can mix new and old hardware.

Proximity card readers use basic RFID to read a card number with no encryption, while smart card readers use an encrypted chip with mutual authentication between card and reader. Smart cards are generally more secure, since the credential data can’t be read or copied. Kastle’s Multitech reader supports both in one device, giving buildings the flexibility to run either credential type.

Access control reader compatibility depends on the manufacturer and model already in place. Kastle’s open API connects with some existing door readers beyond Aliro-certified models, so an upgrade can sometimes build on what’s installed instead of a full rip-and-replace. Compatibility varies by reader, so the first step is to have Kastle assess the existing hardware. Kastle’s readers also support HID iClass and Seos credentials and communicate over modern OSDP and legacy Wiegand.

The right choice depends on the entry point and the credentials your building already uses. Standard doors typically use a wall- or mullion-mount reader; high-visibility lobbies suit an architectural reader with a custom logo, and elevators, turnstiles, and kiosks call for a smaller embedded reader. Then, match the reader to your current credentials, proximity, smart card, or mobile, so the transition is seamless. Kastle’s team can assess your building and recommend the right reader for each entry point. Property type matters too: commercial door card readers are prioritized differently for offices than for multifamily entries. See our commercial real estate and multifamily pages for details.
